| Place of Origin: | China |
| Brand Name: | CAMEL |
| Certification: | CE RoHS |
| Model Number: | ST870 |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | reasonable factory-direct prices |
| Packaging Details: | paperbox for each unit; carton box for 100pcs at dimension 52*43*32cm |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30,000pcs per month |
| Product Name: | Touch Sensor Exit Button | Input: | 30mA (standby); 60mA (active) @12V DC |
|---|---|---|---|
| Cable Wires: | NO/NC/COM/+12V/GND | LED Indicator: | Blue For Standby And Green For Active |
| Dimension: | 115L*70W*25H(mm) = 4.52L*2.75W*0.98H(inch) | Package: | 100pcs/16kg/51*43*33cm/ctn |
| Accessories: | M70 Backbox | Warranty: | 3 Year |
| High Light: | Access Control Exit Button,Touch Sensor Button |
||

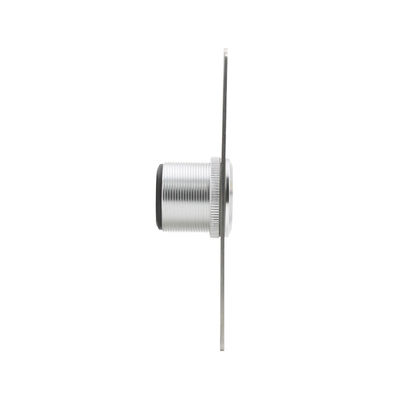

Access Control Touch Sensor Button ANSI Size Easy to Install Soft Touch
Description
Camel Security ST870 is 304 stainless steel material faceplate, ANSI size, touch to exit button for indoor use. With touch sensitive switch unit designed for use with access control system or connect to electric locks. It is an ideal replacement for conventional push buttons, door release button etc.
Product Name
touch to exit button, rex touch, touch rex, touch request to exit, touch sensor button, touch sensitive, exit button
Key Features of ST870 touch exit button
1, Camel Security new design touch sensors with built in sensor and relay.
2, requires very slight touch to active
3, no moving parts
4, two LED indicator provide visual confirmation for standby (Blue) and operated/actived (Green)
5, built-in sounder buzzer
6, single gang plate fits flush box, we also provide Narrow Long Size 115*40 plate, European Size 86*86 plate and 86*50 plate
7, 9-12V DC
8, 30mA current consumption when standby and 60mA when actived
9, CE RoHS Certificated
10, 3 years warranty
11, experienced sales person with full support
Specifications
Application
| Application | |
| Industry | office, gas stations, shops, real estate |
| home | family, warehouse |
