| Model: | T3NT | Size: | 80L*32W*23H Mm |
|---|---|---|---|
| Weight: | 0.105kg | Power Supply: | DC12-24V |
| Output Contact: | NO/NC/COM | Sensitive Distance: | 5-20cm Distance Is Adjustable |
| Time Delay: | 0-30s Delay Adjustment | Waterproof: | IP68 |
| LED Indicator: | Standby Blue, Response Green. | Material: | Zinc Alloy |
| Panel Logo: | Customizable | Mechanical Life: | 500,000 Tested Aging Test Qualified |
| Operating Temp: | -20℃～+55℃(-4-131F) | Operating Humidity: | 0-95% (RH) |
| Package Quantity: | 1 PCS/box, 100 PCS/case. |

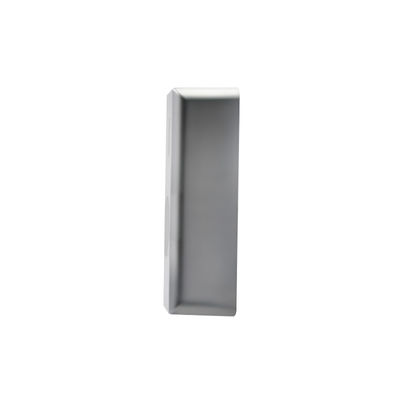

Model: T3NT-DT
Surface Mount NO TOUCH Exit Button; NO/NC/COM;
Sensitive Distance Adjustable 5-20cm; Time Delay Adjustable 0~30s;
LED indicator color can be customized;
Customizable outdoor waterproof function (T3NT-DTM).
| View | Front (Standby) |
Front (Response) | Side | Standard Back (T3NT-DT) | Waterproof Back (T3NT-DTW) |
|
Photos |
|
|
|
|
|
|
Model
|
T3NT
|
|
Size(mm)
|
80L*32W*23H
|
|
Weight
|
0.105kg
|
|
Power Supply
|
DC12-24V
|
|
Output Contact
|
NO/NC/COM
|
|
Sensitive Distance
|
5-20cm distance is adjustable(Customized)
|
|
Time Delay
|
0-30s delay adjustment(Customized) |
|
Waterproof
|
IP68(Customized)
|
|
LED Indicator
|
Standby blue, Response green. (Customizable colors)
|
|
Material
|
Zinc Alloy
|
|
Panel logo
|
Customizable
|
|
Mechanical Life
|
500,000 Tested aging test qualifified
|
|
Operating Temp
|
-20℃～+55℃(-4-131F)
|
|
Operating humidity
|
0-95%(RH)
|
|
Package Quantity
|
1 PCS/box, 100 PCS/case.
|
Features:
