Place of Origin: | China |
Brand Name: | CAMEL SECURITY |
Model Number: | SNT40-B / SNT70-B |
Model: | SNT40-B / SNT70-B | Size: | 115L*40W*25H(mm)/115L*70W*25H(mm) |
---|---|---|---|
Power Supply: | DC12-24V | Output Contact: | NO/NC/COM |
Sensitive Distance: | 5-10cm | Material: | Stainless Steel Panel |
LED Indicator: | Standby Blue, Response Green. | Panel Logo: | Customizable |
Mechanical Life: | 500,000 Tested Aging Test Qualified | Operating Temp: | -20℃~+55℃(-4-131F) |
Operating Humidity: | 0-95% (RH) |

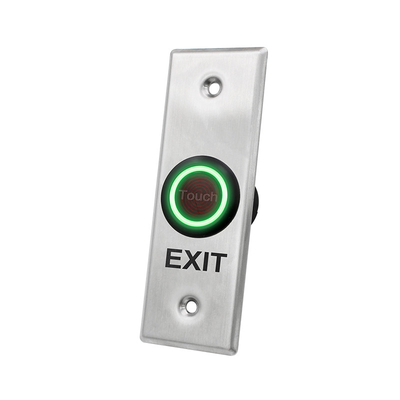

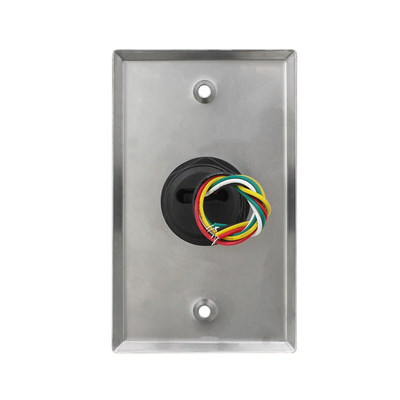

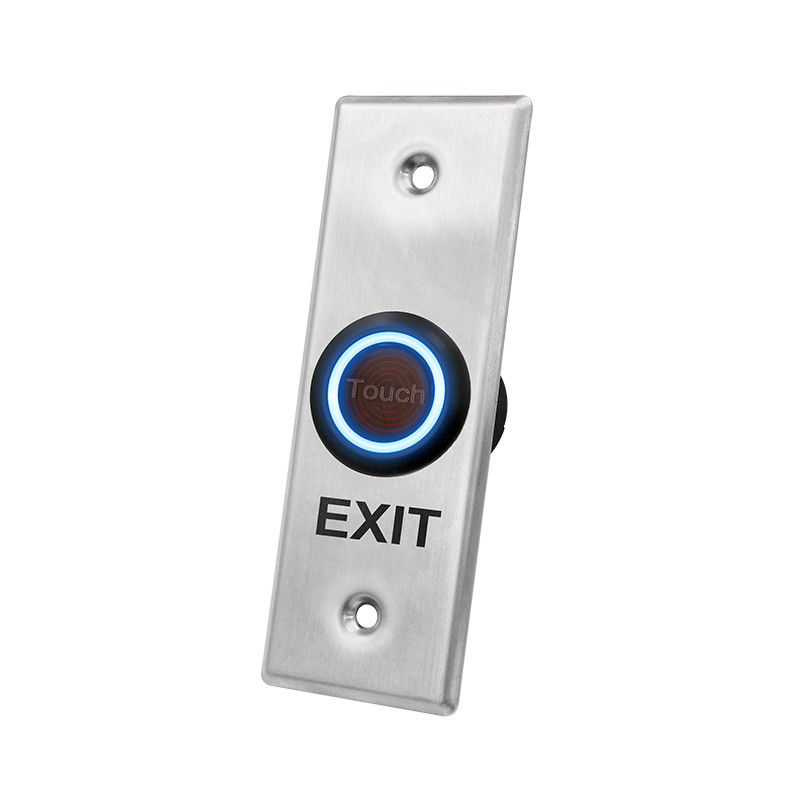

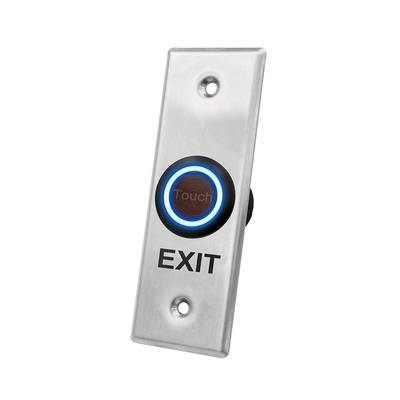

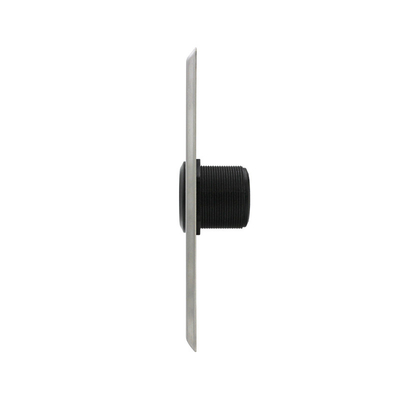

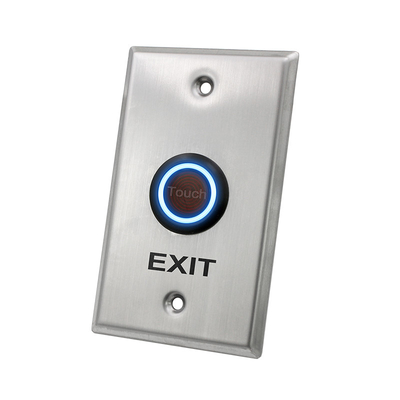

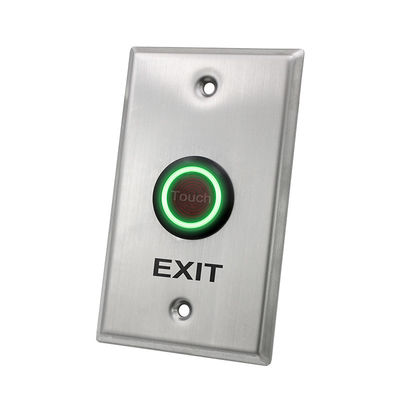

Model: SNT40-B / SNT70-B
Model |
SNT40-B / SNT70-B |
Size(mm) |
115L*40W*25H(mm)/115L*70W*25H(mm) |
Weight(KG) |
0.1KG / 0.13KG |
Power Supply |
DC12-24V |

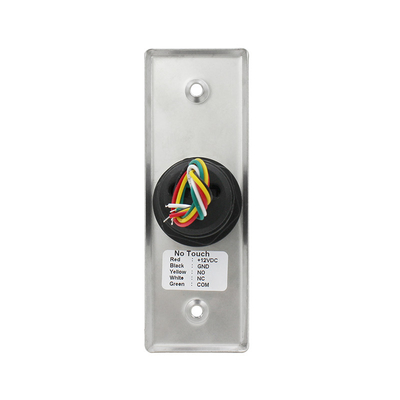

Output Contact |
NO/NC/COM |
Sensitive Distance |
5-10cm |
Material |
Stainless steel panel |
LED Indicator |
Standby blue, Response green |
Panel logo |
Customizable |
Mechanical Life |
500,000 Tested aging test qualifified |
Operating Temp |
-20℃~+55℃(-4-131F) |
Operating humidity |
0-95%(RH) |
Package Quantity |
1 PCS/box, 100 PCS/case. |
Features:
Model
|
SNT40-B
|
SNT70-B
|
Side
|
||
Size
|
115*40mm
|
115*70mm | |||
View
|
Front
|
Back
|
Front
|
Back
|
![]() |
Photos
|
![]() |
![]() |
![]() |
![]() |
Model
|
SNT40-B
|
SNT40-B
|
SNT70-B
|
SNT70-B
|
SNT70-B-R
|
Pattern
|
Button design
|
Panel design
|
Button design
|
LED colour
|
Russian
|
Photos
|
![]() |
![]() |
![]() |
![]() |
![]() |
