| Place of Origin: | China |
| Brand Name: | CAMEL |
| Certification: | CE RoHS |
| Model Number: | Z53M3R/G |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | reasonable prices |
| Packaging Details: | paperbox for each unit; carton box for 100pcs at dimension 51*46*25cm |
| Delivery Time: | within 3 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 60,000 units per month |
| Product Name: | Push To Exit Button | Size: | 53L*53W*26H（mm） |
|---|---|---|---|
| Material: | Zinc Alloy Housing, Mushroom Pushbutton | Output Contact: | NO/NC/COM |
| Package: | 100pcs/14kg/50*45*24cm/ctn | Certificates: | CE RoHS |
| Sign: | EXIT Or OEM Is Welcomed | Color: | Red / Green Mushroom Button |
| High Light: | request to exit button,press to exit button |
||

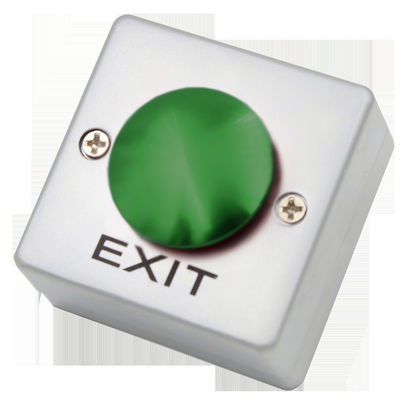

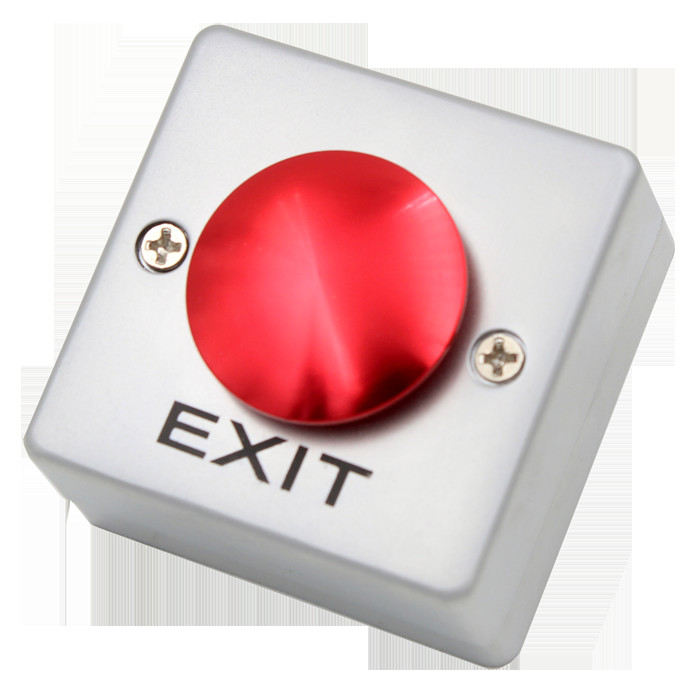

Push to Exit Button SPDT Flat Mushroom Metal Surface Mount for easy installation
Exit Button Specialists Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.
Exit buttons also refer to push to exit button or press to exit button & request to exit button. They are an integral part of all access control systems, doors can be secured but retain the ability to exit easily.
Product Introduction
Z53M3 is a European standard size request to exit button with backbox and zinc alloy housing. The NO//NC/COM Double Feature Flat Mushroom Button and fashion square metal surface mount make it unique.
Exit button is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprised, department stores and residences etc.
Products Key Words
push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control, SPDT door exit button
Key Features
1, NO (normally open) NC (normally close) double features. Much better and market demands
2, zinc alloy housing with backbox, it is good for surface mounted. easy to install.
3, European standard Elegant Design
4, 500,000 cycles tested to assure good quality
5, CE RoHS Certificated, CE at 2014/30/EU and RoHS at 2011/65/EU
6, 3 years warranty, we have confident about our products quality and provide 3 years warranty for our push button products.
Technical Parameter
| Size | 53L*53W*26H(mm) |
| Material | Zinc Alloy Housing, Mushroom Button |
| Current | 3A @36V DC Max. |
| Output Contact | NO/NC/COM |
| Mechanical Life | 100,000 tested |
| Working Temperature | 10‐55℃ (14-131F) |
| Working Humidity | 0-95% (non-condensing) |
| Standard Package | 100pcs/51*46*25cm/18kg/ctn |
