| Place of Origin: | China |
| Brand Name: | CAMEL |
| Certification: | CE RoHS |
| Model Number: | K1-RR |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD5/pc-USD7/pc |
| Packaging Details: | paper box for each unit and carton box for 100pcs |
| Delivery Time: | within 5 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 20,000pcs per month |
| Product Name: | Touchless Exit Button | Output Contact: | NO/NC/COM/LED |
|---|---|---|---|
| Mount: | Mortise Mounted Or Surface Mounted | LED Indicator: | Blue Color When Standby And Green Color When Active |
| Size: | 115*70*25mm | Package: | 100pcs/12kg/51*46*25cm/ctn |

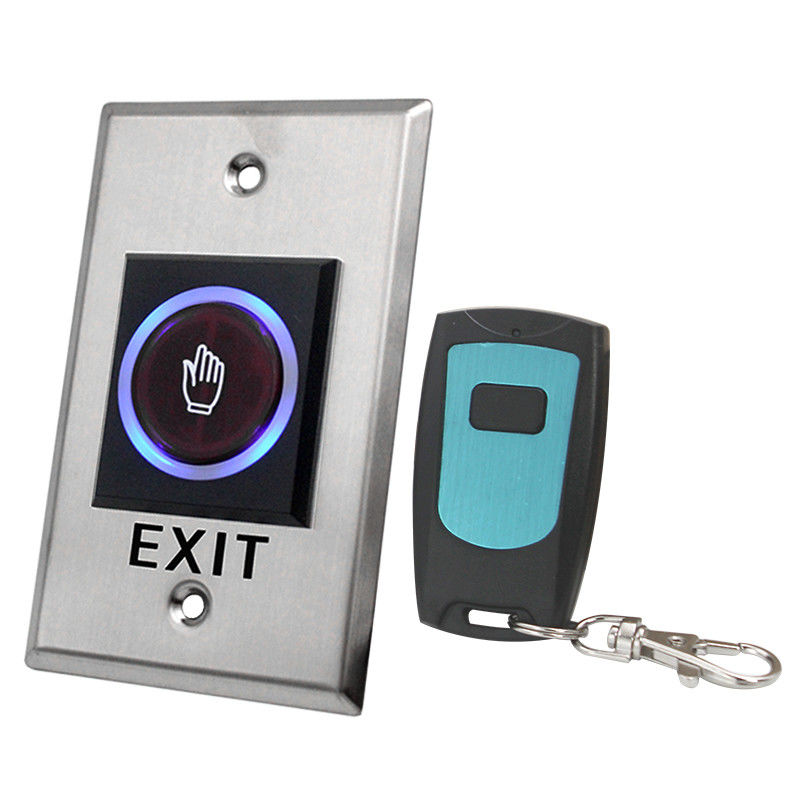

Touchless Exit Button with IR Sensor No Touch Technology and LED Indicator
Product Introduction
K1-RR series IR Sensor No Touch Touchless exit button is casted by 304 stainless steel. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years come.
K1-RR series touchless exit button is IR Sensor technology with 5 cables included for NO (Normal Open), NC (Normal Close) and COM (Common) and +12V DC and GND, it has blue and green 2 colors LED indicator. Blue color when standby ang Green color when actived.
Our standard version is 2 types of faceplate, type A is No Touch letters with EXIT. Type B is Hand Symbol with EXIT. OEM your language or logo will meet our great care and fast answer.
Products Key Words
push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control
Technical Parameter
| Parameter | Description |
| Size | 115*70*25mm |
| Standard Structure | 304 Stainless Steel Panel, IR Sensor Button |
| Panel Material | 304 Stainless Steel Panel, Sandblast Finished |
| Current | 3A @12V DC, 24V DC Available |
| Output Contact | NO/NC/COM |
| Mechanical Life | 500,000 tested |
| Operating Temperature | 10‐55℃ (14-131F) |
| Operating Humidity | 0-95% (non-condensing) |
| Weight | 0.12kg |
| Package | 100pcs/52*43*32cm/12kg/ctn |
Features
1, European size 86*86mm, ANSI Size 115*70mm available
2, No Touch sign or Hand Symbol, different facelates to meet differnet requirements
3, Blue and Green colors LED indicator, blue color when standby, green color when actived
4, 304 Stainless Steel Faceplate, elegant design with safety handle. It is same material used for turnstile gate barrier. 304 Stainless steel is much better than 201 stainless steel, which other factory used.
5, CE RoHS Certification, we are honered to provide CE RoHS Certifications
6, 3 years warranty to ensure you after sales service
Detail Introduction Photo
