N.O / COM Contacts Slim Press To Exit Switch , Round Corner Stainless Steel Push Button

N.O / COM Contacts Slim Press To Exit Switch , Round Corner Stainless Steel Push Button

    • N.O / COM Contacts Slim Press To Exit Switch , Round Corner Stainless Steel Push Button
    • N.O / COM Contacts Slim Press To Exit Switch , Round Corner Stainless Steel Push Button
    • N.O / COM Contacts Slim Press To Exit Switch , Round Corner Stainless Steel Push Button
  • N.O / COM Contacts Slim Press To Exit Switch , Round Corner Stainless Steel Push Button

    Product Details:

    Place of Origin: China
    Brand Name: CAMEL
    Certification: CE RoHS
    Model Number: S40

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: reasonable factory-direct prices
    Packaging Details: paperbox for each unit; carton box for 100pcs at dimension 52*43*32cm
    Delivery Time: within 3 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000,000pcs per month
    Contact Now
    Detailed Product Description
    Contacts: N.O/COM Installation: Mortise Mounted Or Flush Mounted
    Optional Accessories: M40 Backbox Size: 115*40*25mm
    Material: 304 Stainless Steel Faceplate And Metal Button Product Name: Press To Exit Button
    Sign: OEM Welcomed Package: 100pcs/8.5kg/51*43*33cm/ctn
    Highlight:

    request to exit button

    ,

    press to exit button



    Narrow Size Push to Exit Button Round Corner Stainless Steel Push Button





    Technical Parameter

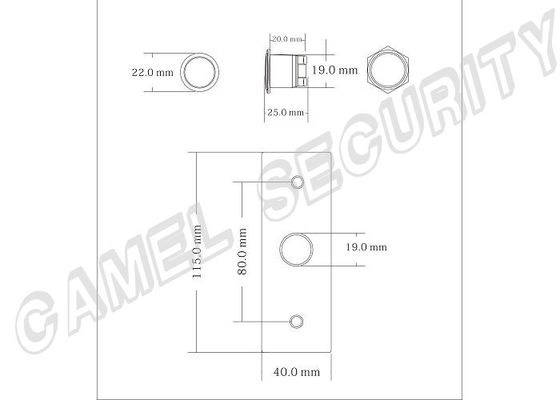

    Size 115W*40L*25H (mm)
    Material 0.9mm Thick 304 Stainless steel(Wire Drawing)
    Current 0.5A/12-24V
    Mechanical Life 100,000 times tested
    Output Contacts N.O/COM
    Working Temperature 10‐55℃ (14-131F)
    Working Humidity 0-95% (non-condensing)
    Standard Package 100pcs/51*43*33cm/8.5kg/ctn





    Product Introduction



    Exit buttons also refer to push to exit button or press to exit button & request to exit button. They are an integral part of all access control systems, doors can be secured but retain the ability to exit easily.

    Exit button is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprised, department stores and residences etc.



    S40 Series product is American ANSI size, also called sqaure size press to exit button, we also provide elegant style square size backbox M40 for surface mount. It is screw terminal for easy installation and nice looking.



    Exit Button Specialists Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.





    Key Features



    1, strong and durable 304 stainless steel button and panel, laser printing for years last

    2, 115*40mm square size is good for North & South American and other countries at this size.

    3, gate & hand template or PRESS TO EXIT sign available, we also welcome OEM your sign

    4, color cables included, it save your time and energy when installation

    5,  screw type terminal installation for easy use

    6, carry CE RoHS Certification, CE at 2014/30/EU and RoHS at 2011/65/EU

    7, 3 years warranty, we have confident about our products quality and provide 3 years warranty for our push button products.





    Products name



    push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box

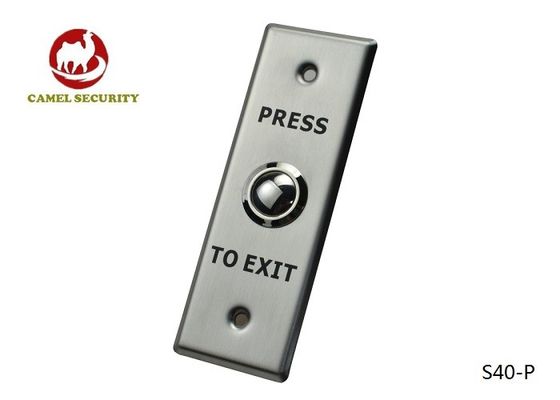

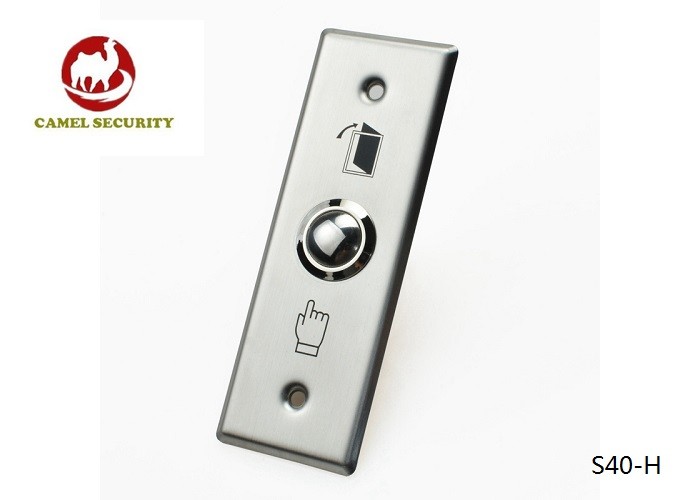

    Photoes of Camel Security Exit Buttons







    N.O / COM Contacts Slim Press To Exit Switch , Round Corner Stainless Steel Push Button
