Model: | K1-1 | Size: | 115L*70W*16H(mm) |
---|---|---|---|
Weight: | 0.13KG | Power Supply: | DC12-24V |
Output Contact: | NO/NC/COM | Sensitive Distance: | 5-15cm Adjustable |
Time Delay: | 0-9s Delay Adjustment(K1-1-T) | LED Indicator: | Standby Blue, Response Green. |
Panel Logo: | Customizable | Mechanical Life: | 500,000 Tested Aging Test Qualified |
Operating Temp: | -20℃~+55℃(-4-131F) | Operating Humidity: | 0-95% (RH) |
Accessories: | 115*70mm Back Box Optional |
Model: K1-1
Model |
K1-1 |
Size(mm) |
115L*70W*16H (mm) |
Weight(KG) |
0.13KG |
Power Supply |
DC12-24V |
Output Contact |
NO/NC/COM |
Sensitive Distance |
5-15cm(Adjustable) |
Time Delay |
0-9s delay adjustment(K1-1-T) |
LED Indicator |
Standby blue, Response green |
Material |
Stainless steel panel |
Accessories |
115*70mm Back box optional |
Panel logo |
Customizable |
Mechanical Life |
500,000 Tested aging test qualifified |
Operating Temp |
-20℃~+55℃(-4-131F) |
Operating humidity |
0-95%(RH) |
Package Quantity |
1 PCS/box, 100 PCS/case. |
Features:
View
|

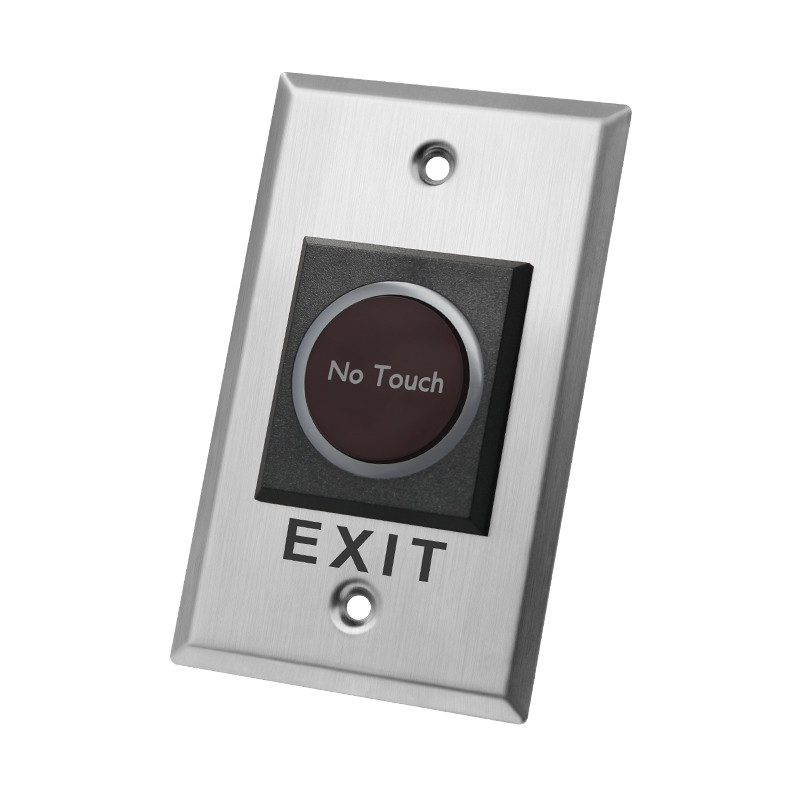

Front (Standby)
|

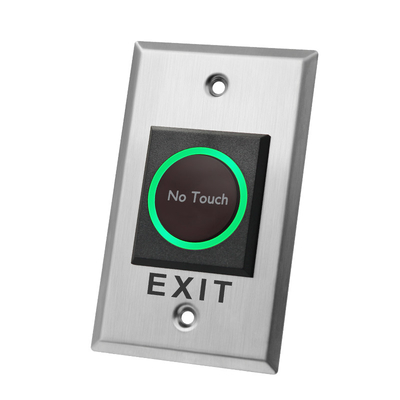

Front (Response)
|

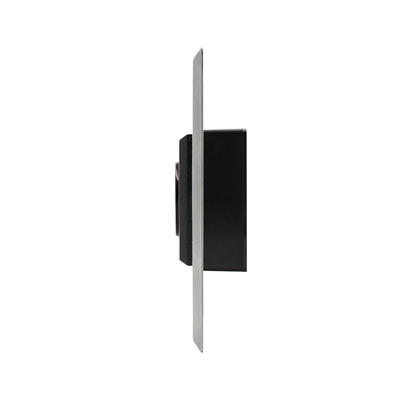

Side
|

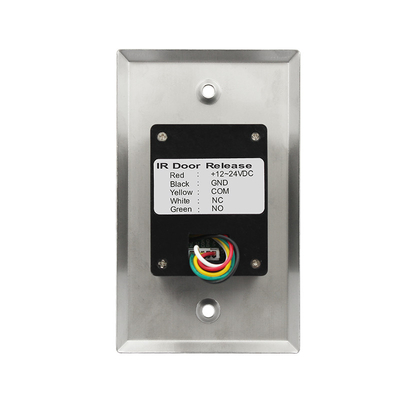

Back
|
Photos
|
![]() |
![]() |
![]() |
![]() |
