Home ProductsANSI Size Button (115*70mm)

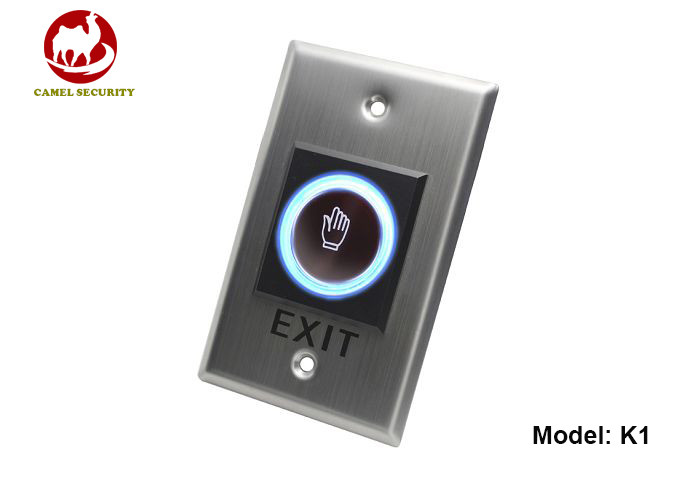

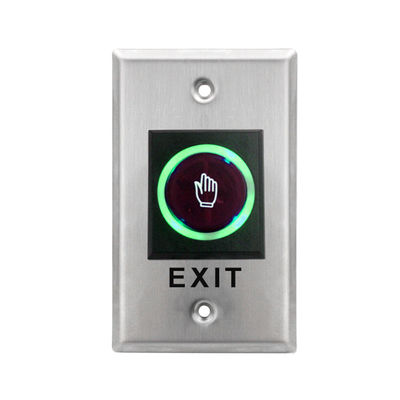

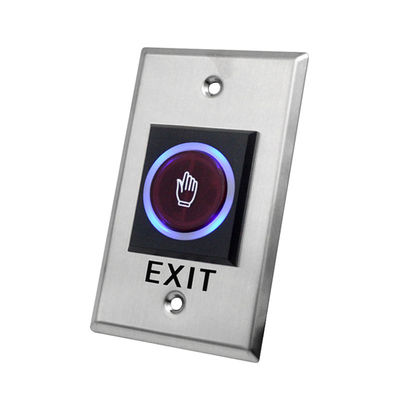

IR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mm

IR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mm

    • IR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mm
    • IR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mm
    • IR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mm
    • IR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mm
  • IR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mm

    Product Details:

    Place of Origin: China
    Brand Name: CAMEL
    Certification: CE RoHS
    Model Number: K1

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: USD5/pc-USD7/pc
    Packaging Details: paper box for each unit and carton box for 100pcs
    Delivery Time: within 5 working days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Size: 115*70*25mm Product Name: Touchless Exit Button
    Output Contact: NO/NC/COM Mount: Mortise Mounted Or Surface Mounted
    Standard Package: 100pcs/15kg/51*46*25cm/ctn LED Indicator: Blue For Standby And Green For Active
    Highlight:

    no touch exit button

    ,

    infrared sensor exit button



    IR Sensor NO Touch Touchless Exit Button with LED Indicator and Time Delay





    Product Introduction



    K1 K1-1 series IR Sensor No Touch Touchless exit button is casted by 304 stainless steel. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years come. ANSI size is hot sell items in North America and South Americ as well as other countries at this size.



    K1 K1-1 series touchless exit button is IR Sensor technology with 5 cables included for NO (Normal Open), NC (Normal Close) and COM (Common) and +12V DC and GND, it has blue and green 2 colors LED indicator. Blue color when standby ang Green color when actived.



    Our standard version is 2 types of faceplate, type A is No Touch letters with EXIT. Type B is Hand Symbol with EXIT. OEM your language or logo will meet our great care and fast answer.





    Products Key Words



    push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control





    Technical Parameter



    Parameter ​Description
    Size 115*70*25mm
    Standard Structure 304 Stainless Steel Panel, IR Sensor Button
    Panel Material 304 Stainless Steel Panel, Sandblast Finished
    Current 3A @12V DC, 24V DC Available
    Output Contact NO/NC/COM
    Mechanical Life 500,000 tested
    Operating Temperature 10‐55℃ (14-131F)
    Operating Humidity 0-95% (non-condensing)
    Weight 0.13kg
    Package 100pcs/52*43*32cm/14kg/ctn































    Features



    1, ANSI size 115*70mm, 86*86mm size available



    2, Blue and Green colors LED indicator, blue color when standby, green color when actived



    3, 304 Stainless Steel Faceplate, elegant design with safety handle. It is same material used for turnstile gate barrier. 304 Stainless steel is much better than 201 stainless steel, which other factory used.



    4, No Touch sign or Hand Symbol, different facelates to meet differnet requirements



    5,  CE RoHS Certification, we are honered to provide CE RoHS Certifications



    6, 3 years warranty to ensure you after sales service






    IR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mmIR Sensor Touchless Exit Button With LED Indicator ANSI Size 115 * 70mm
