Place of Origin: | China |
Brand Name: | CAMEL |
Certification: | CE RoHS |
Model Number: | SP870E |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | reasonable prices |
Packaging Details: | paperbox for each unit; carton box for 100pcs at dimension 56*37*47cm |
Delivery Time: | within 3 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 20,000pcs per month |
Button Switch: | Mushroom Button | Mushroom Color: | Green |
---|---|---|---|
Output Contact: | NO/NC/COM | Lifetime: | 500,000 Times Tested |
Size: | 115W*70L*30H(mm) | Package: | 100pcs/0.25kg/56*37*47cm/ctn |
Accessories: | M70 Backbox | Material: | 1.7mm Thick 304 Stainless Steel (Wire Drawing) |
Contact Rating: | 3A/125-250VAC |

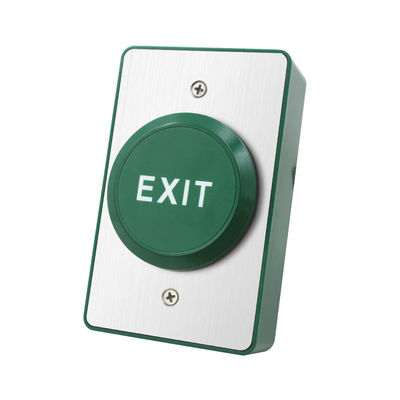

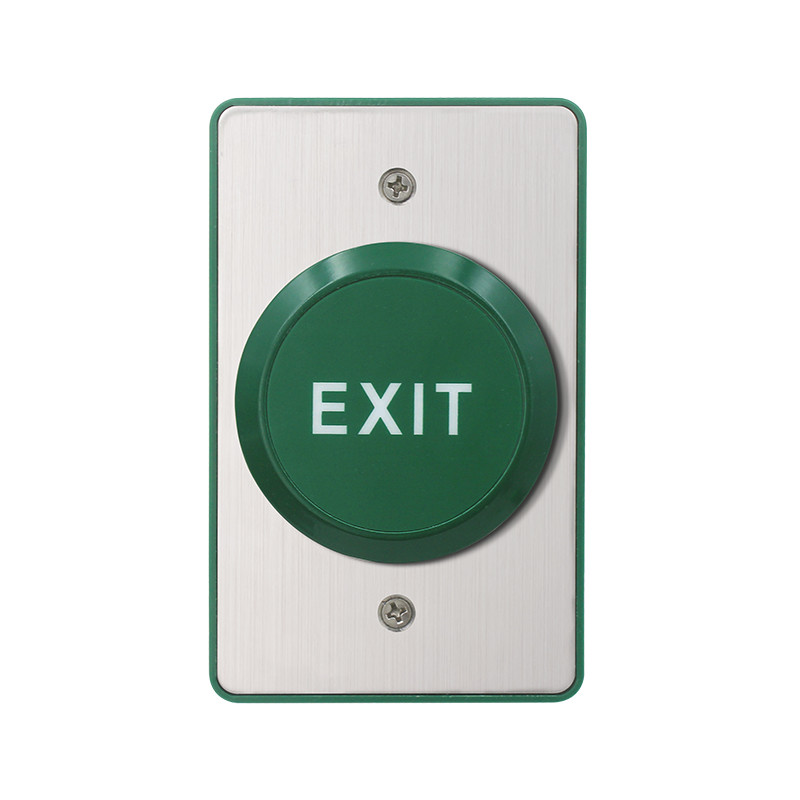

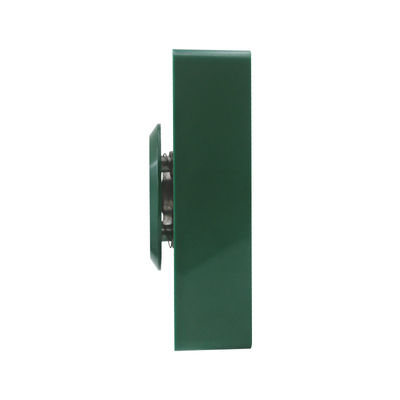

Flat Mushroom Press to Exit Push Button for Door Exit Access Control
Product Introduction
SP870E/P/H mushroom door exit push button is using the light but strong stainless steel material with brushed and PRESS To EXIT Sign faceplate. Together with NO(normal open) NC (normal close) mushroom switch to realize its excellent performance. The mushroom color can be green.
M6 mushroom switch is flat design with bigger press / contact area for better use.
This flat mushroom button is ideal use for rush-traffice area, train station, bus station and travel site with crowd people. Also it is good use for disableman or handicapped persons.
Exit Button Specialists Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.
Key Advantages
1, mushroom buttons is bigger area for press, it is better choice for eye-catching and some industry application.
2, different letters for many applications.
3, stainless steel faceplate is light weight but strong and durable
4, brushed plate can be good scratch-resistant
5, ANSI Size 115L*70W(mm) size is popular and hot sell in European markets, as well as Asian countries
6, sqaure size and narrow size also available, such as 86W*86L (mm)
7, micro-switch with N.O. (normal open) and N.C. (normal close) output contacts for all kinds of locks
8, color cabled indicated wire connection
9, M86 backbox / backcase available to make it install directly on the wall surface mount
10, 3 years warranty for you full support and after-sale services
11, CE RoHS listed
12, experienced sales team with fast prompt answer by email or online talk
Products name
mushroom button, mushroom exit switch, push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box
Technical Parameter
Product Name | Mushroom Press to Exit Button |
Model Name | SP870E/P/H |
Size | 115W*70L*30H(mm) |
Material | Stainless Steel Faceplate, Mushroom Micro-switch Button |
Lifetime | 500,000 Times Tested |
Contacts | N.O./N.C./COM |
Certification | CE RoHS |
Standard Package 100pcs/0.25kg/56*37*47cm/ctn |
Products Details Introduction for S886M5 Mushroom Press Button
