Home ProductsANSI Size Button (115*70mm)

Fireproof Material Wave To Exit No Touch Switch , Door Open Button Long - Life Tested

Fireproof Material Wave To Exit No Touch Switch , Door Open Button Long - Life Tested

    • Fireproof Material Wave To Exit No Touch Switch , Door Open Button Long - Life Tested
    • Fireproof Material Wave To Exit No Touch Switch , Door Open Button Long - Life Tested
    • Fireproof Material Wave To Exit No Touch Switch , Door Open Button Long - Life Tested
    • Fireproof Material Wave To Exit No Touch Switch , Door Open Button Long - Life Tested
  • Fireproof Material Wave To Exit No Touch Switch , Door Open Button Long - Life Tested

    Product Details:

    Place of Origin: China
    Brand Name: CAMEL
    Certification: CE RoHS
    Model Number: SNT870

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: reasonable factory-direct prices
    Packaging Details: paperbox for each unit; carton box for 100pcs at dimension 52*43*32cm
    Delivery Time: 5-8 days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 30,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Touchless Sensor Exit Button Input: 30mA (standby); 60mA (active) @12V DC

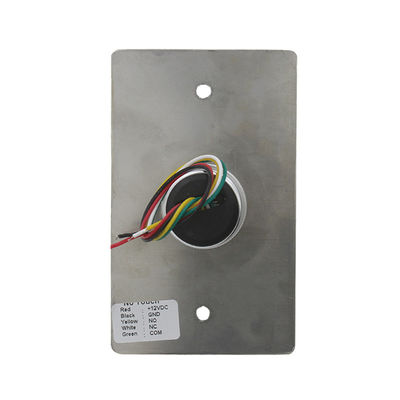

    Cable Wires: NO/NC/COM/+12V/GND LED Indicator: Blue For Standby And Green For Active
    Material: Brushed Aluminum Panel, Metal Button Dimension: 115L*70W*25H(mm) = 4.52L*2.75W*0.98H(inch)
    Package: 100pcs/16kg/52*43*32cm/ctn Certificates: CE&RoHS
    High Light:

    no touch exit button

    ,

    stainless steel exit button



    Wave to Exit Touchless Exit Button for 3-year-warranty Assurance OEM Welcomed







    Technical Parameter



    dimension 115L*70W*25H(mm) = 4.52L*2.75W*0.98H(inch)
    input 30mA (standby); 60mA (active) @ 12V DC
    output NO/NC/COM
    standard structure: 304 stainless steel plate, steel button
    working temperature 10‐55℃ (14-131F)
    working humidity 0-95% (non-condensing)
    LED indicator

    white LED indicator Power Off

    Blue LED Indicator Standby

    Green LED Indicator Active

    weight 0.145kg







    Key Features of SNT870 touchless exit button



    1, the switch can be activated by a simple hand wave or approach-sanitary and easier access.

    2, NO and NC output for all kinds of locks

    3, no moving parts - more durable

    4, two LED indicator provide visual confirmation for standby (Blue) and operated/actived (Green)

    5, built-in sounder buzzer

    6, single gang plate fits flush box, we also provide Narrow Long Size 115*40 plate, European Size 86*86 plate and 86*50 plate, surface mounting backbox

    7, 9-12V DC

    8, 30mA current consumption when standby and 60mA when actived

    9.M70 Backbox is available

    10, CE RoHS Certificated

    11, 3 years warranty

    12, experienced sales person with full support







    Product Name



    no touch to exit button, rex touchless, touchless rex, no touch request to exit, touchless sensor button, touchless sensitive, exit button





    Description

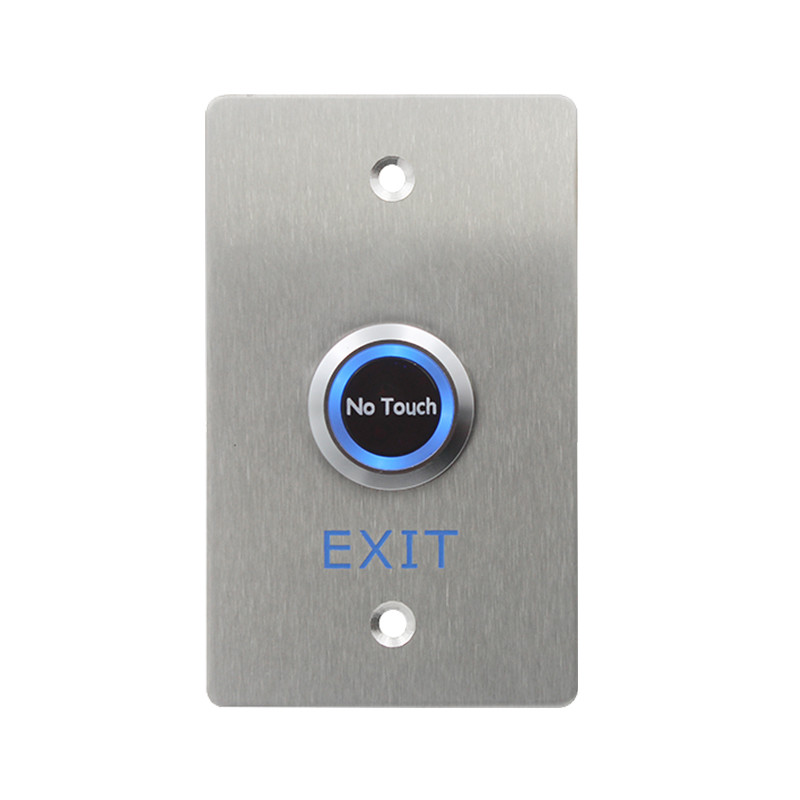

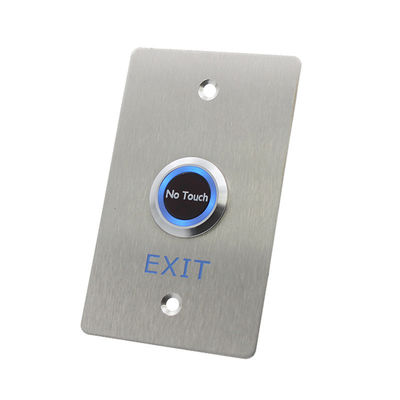

    Camel Security SNT870 is a rectangle ANSI America size IR Sensor touchless  no touch to exit button with 304 stainless steel plate for indoor use. With touchless sensitive switch unit designed for use with access control system or connect to electric locks. It is an ideal replacement for conventional push buttons, door release button etc.





    Product Pictures



    Fireproof Material Wave To Exit No Touch Switch , Door Open Button Long - Life Tested
