| Place of Origin: | China |
| Brand Name: | CAMEL |
| Certification: | CE RoHS |
| Model Number: | ST850 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | reasonable factory-direct prices |
| Packaging Details: | paperbox for each unit; carton box for 100pcs at dimension 51*46*25cm |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30,000pcs per month |
| Product Name: | Touch Sensor Exit Button | Input: | 30mA (standby); 60mA (active) @12V DC |
|---|---|---|---|
| Cable Wires: | NO/NC/COM/+12V/GND | Dimension: | 86L*50W*25H(mm) = 3.38L*1.97W*0.98H(inch) |
| Material: | Brushed Aluminum Panel, Metal Button | LED Indicator: | Blue For Standby And Green For Active |

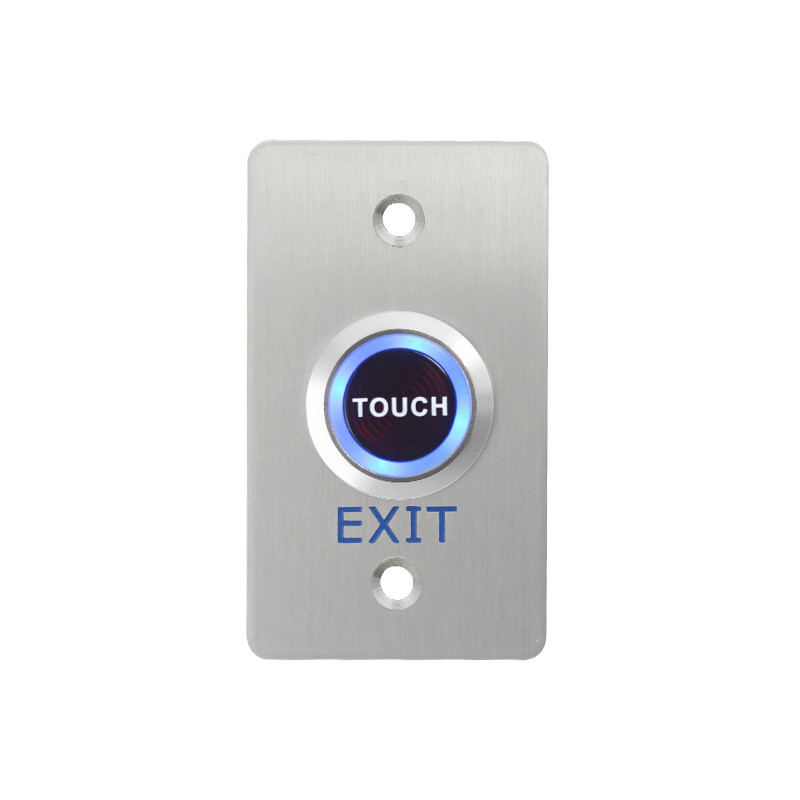

304 Stainless Steel Touch Sensor Exit Button for Door Exit No Moving Part
Specifications
Description
Camel Security ST850 is a 304 stainless steel material, narrow size, touch to exit button for indoor use. With touch sensitive switch unit designed for use with access control system or connect to electric locks. It is an ideal replacement for conventional push buttons, door release button etc.
Key Features of ST850 touch exit button
1, Camel Security new design touch sensors with built in sensor and relay.
2, requires very slight touch to active
3, no moving parts
4, two LED indicator provide visual confirmation for standby (Blue) and operated/actived (Green)
5, built-in sounder buzzer
6, single gang plate fits flush box, we also provide ANSI Size 115*70 plate, Narrow Size 115*40 plate and 86*86 plate
7, 9-12V DC
8, 30mA current consumption when standby and 60mA when actived
9, CE RoHS Certificated
10, 3 years warranty
11, experienced sales person with full support
Product Name
touch to exit button, rex touch, touch rex, touch request to exit, touch sensor button, touch sensitive, exit button
Product Pictures
