Piezoelectric Normally Open Push Button Door Release With Scratchproof Laser Printing

Piezoelectric Normally Open Push Button Door Release With Scratchproof Laser Printing

    • Piezoelectric Normally Open Push Button Door Release With Scratchproof Laser Printing
    • Piezoelectric Normally Open Push Button Door Release With Scratchproof Laser Printing
    • Piezoelectric Normally Open Push Button Door Release With Scratchproof Laser Printing
  • Piezoelectric Normally Open Push Button Door Release With Scratchproof Laser Printing

    Product Details:

    Place of Origin: China
    Brand Name: CAMEL
    Certification: CE RoHS
    Model Number: S840PS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: reasonable prices
    Packaging Details: paperbox for each unit; carton box for 100pcs at dimension 52*43*32cm
    Delivery Time: within 3 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Button Switch: Piezoelectric Button Waterproof Level: IP68
    Material: 304 Stainless Steel Faceplate And Piezoelectric Button Output Contact: NO/COM (S840PS1) ; NO/NC/COM (S840PS2)
    Lifetime: 1 Million Times Size: 115*40*20mm
    Optional Accessories: M40 Backbox Contact Area: 20.8mm Diameter
    High Light:

    door release push button

    ,

    press to exit button



    Long-life tested Piezoelectric Door Exit Push Button with Scratchproof Laser Printing





    Product Introduction

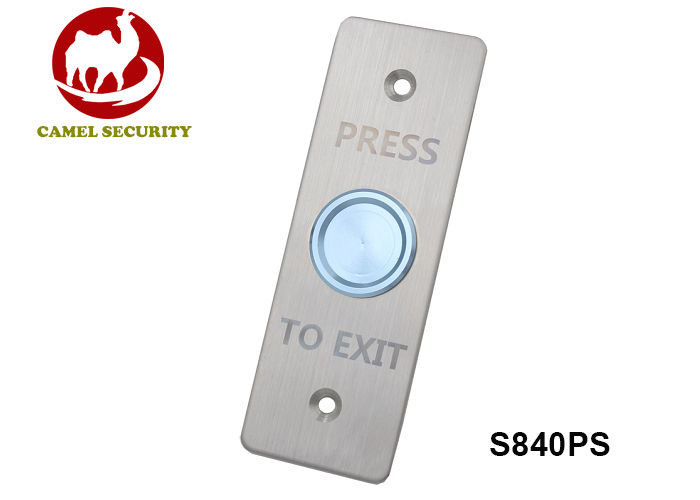

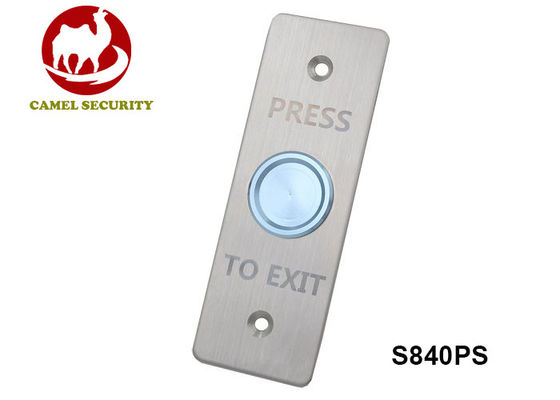

    S840PS piezoelectric switch button is anti-vandal, heavy duty, non-sparking, non-magnetic, corrosion resistant switch designed for both indoor and outdoor use.

    It features solid state piezoelectric switch technology generating a dry contact N.O /COM or N.O. /N.C./COM relay pulse simply by the touch of a finger, with no physical movement or moving parts.



    The PS series piezoelectric switch mounts directly to a 1 gang 304 stainless steel faceplates at different sizes, such as European Size 86*86mm and 86*50mm. ANSI Size 115*70mm and Narrow Size 115*40mm.

    The optional backbox is also available according to different sizes.



    Text graphics is PRESS TO EXIT or hand/gate symbol.



    Exit Button Specialists Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.





    Key Advantages



    1, IP68 waterproof, fully potted design prevents penetration of dirt, dust and water

    2, long life expectancy, over 1 million cycles

    3, vandal resistant, heavy duty, non-magnetic, non-sparking, corrosion resistant for both indoor and outdoor use

    4, can be operated with fingers, gloves and through elastomeric overlays

    5, easy to clean surface

    6, solid-state No Moving parts

    7, momentary working type

    8, 22mm diameter and big area for finger press

    9, different size faceplates are available. ANSI Size, European Size and narrow size are also available, such as 115L*70W(mm); 115L*40W (mm) and 86L*86W (mm) and 86W*50L(mm)

    10, M40 backbox / backcase is available to make it install directly on the wall surface mount

    11, 3 years warranty for you full support and after-sale services

    12, CE RoHS listed

    13, experienced sales team with fast prompt answer by email or online talk





    Technical Parameter



    Product Name Piezoelectric Switch Button
    Input Voltage 12-24V DC
    Size 115W*40L*20H(mm)
    Material 304 Stainless Steel Faceplate, Piezoelectric Switch Button
    Lifetime 1 million cycles

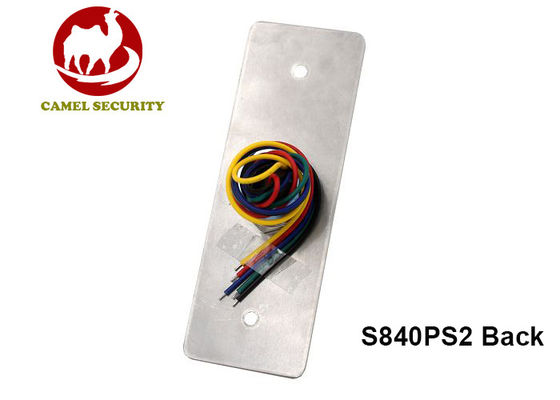

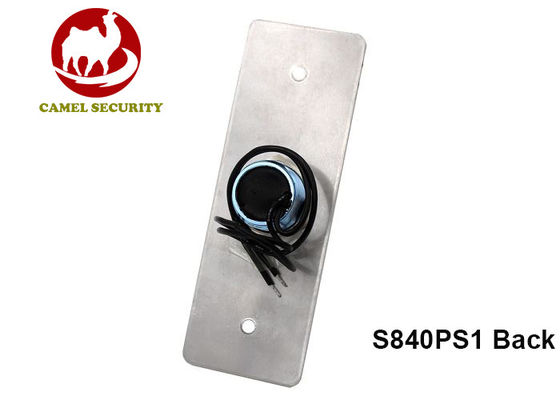

    Contacts N.O./N.C./COM (S840PS2)' N.O./COM (S840PS1)
    Certification CE RoHS
    Standard Package 100pcs/16kg/52*43*32cm/ctn
    Working Voltage 12-24V DC
    Weight 0.12kg
    Graphics "PRESS TO EXIT"



    Products name



    piezoelectric switch button, push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box







    Products Details Introduction for S840PS Piezoelectric Switch Exit Button



    Piezoelectric Normally Open Push Button Door Release With Scratchproof Laser Printing
