Place of Origin: | China |
Brand Name: | CAMEL |
Certification: | CE RoHS |
Model Number: | AT840 |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | reasonable factory-direct prices |
Packaging Details: | paperbox for each unit; carton box for 100pcs at dimension 52*43*32cm |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 30,000pcs per month |
Product Name: | Touch Sensor Exit Button | Input: | 30mA (standby); 60mA (active) @12V DC |
---|---|---|---|
Cable Wires: | NO/NC/COM/+12V/GND | LED Indicator: | Blue For Standby And Green For Active |
Dimension: | 115L*40W*25H(mm) = 4.52L*1.57W*0.98H(inch) | Package: | 100pcs/9.5kg/51*43*33cm/ctn |
Accessories: | M40 Backbox | Assurance: | 3-year-warranty |
High Light: | LED touch sensor switch,Access Control Exit Button |
Soft Touch Exit Button with Touch Sensor Narrow Long Size Faceplate Cables Incuded
Product Name
touch to exit button, rex touch, touch rex, touch request to exit, touch sensor button, touch sensitive, exit button
Description

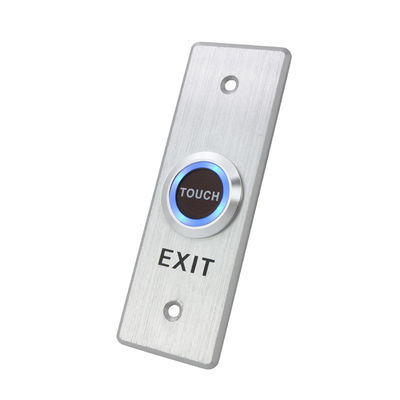

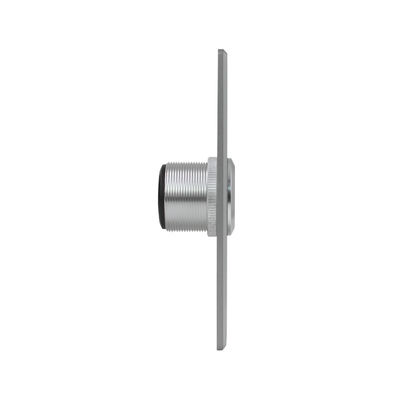

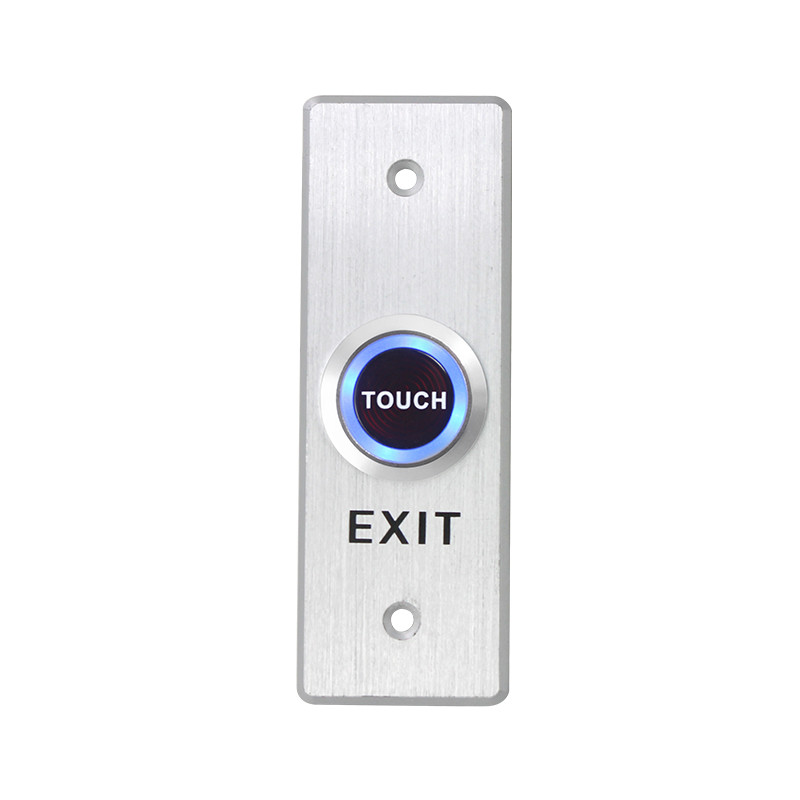

Camel Security AT840 is a brushed aluminum alloy, square wide size, touch to exit button for indoor use. With touch sensitive switch unit designed for use with access control system or connect to electric locks. It is an ideal replacement for conventional push buttons, door release button etc.
Key Features of AT840 touch exit button
1, Camel Security new design touch sensors with built in sensor and relay.
2, requires very slight touch to active
3, no moving parts
4, two LED indicator provide visual confirmation for standby (Blue) and operated/actived (Green)
5, built-in sounder buzzer
6, single gang plate fits flush box, we also provide ANSI Size 115*70 plate, European Size 86*86 plate and 86*50 plate
7, 9-12V DC
8, 30mA current consumption when standby and 60mA when actived
9, CE RoHS Certificated
10, 3 years warranty
11, experienced sales person with full support
Specifications
Product Pictures
Application
Application | |
Industry | office, gas stations, shops, real estate |
home | family, warehouse |
