| Place of Origin: | China |
| Brand Name: | CAMEL |
| Certification: | CE |
| Model Number: | ACS4 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | Within 3 working days after full payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 50,000pcs per month |
| Voltage: | 12VDC | Current: | <90mA |
|---|---|---|---|
| Dimension: | 120*76*27mm | Frenquency: | 125Khz EM Type |
| Reading Distance: | 3-8cm | User Capacity: | 1000 |
| Lock Interface: | Relay Output Or Level Output | Environmental Temperature: | Working:0C~45C Storage:-10C~55C |
| High Light: | gate access keypad,code keypad for access control |
||

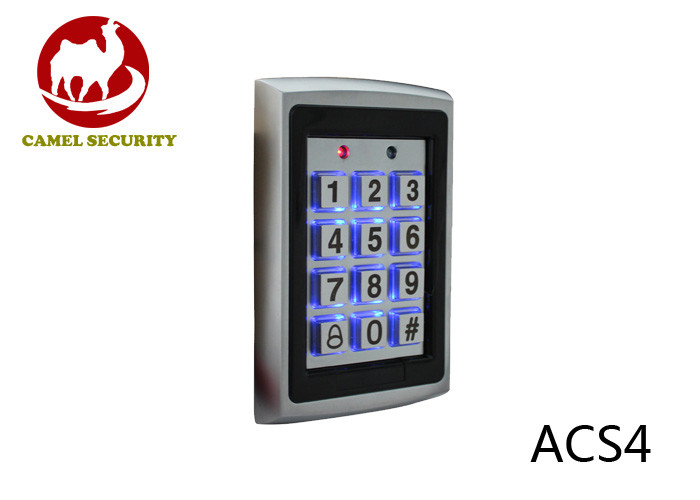

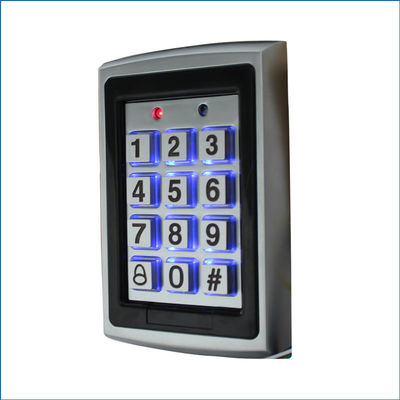

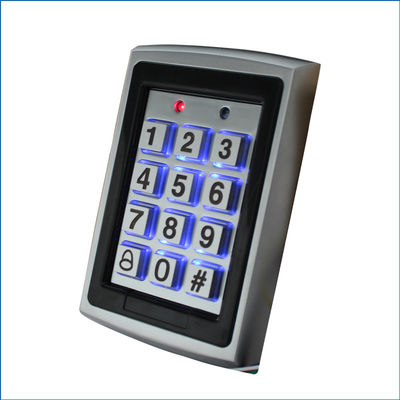

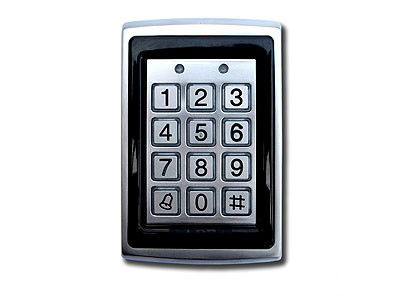

Metal keypad Reader Standalone Access Controller with Backlight
Description:
ACS4 metal keypad access controller is good design and anti-vandal. Its built-in reader has fast response when swipe card, meanwhile it can unlock door by password or card + password.Products itself comes with English manual and good package.
Product Introduction
| User Capacity | 1000 |
| Read Distance | 3-8cm (EM type) |
| Voltage | 12VDC+10%, Current 1.2A |
| Password Capacity | 500 |
| Interface | Exit Button, Bell, Door Contact, External Reader |
Product Features
| - Support EM-ID/Mifare or Password Mode - Build-in access control card reader and kepad Manage - Operating Mode: Proximity Card or Password or Card + Password. |
Product Overview
Standalone Access Controller: This Radio Frequency Identification (RFID) access controller is the 3rd generation controller. With newly added functions it is one of the most advanced standalone access controller. The controller is built on powerful modern Central Processing Unit. It manages up to 800 card users, and access mode can be set to Authorized Card Only, Authorized Card or Public PIN and Authorized Card + Personal PIN.
Additional functions includes: door sensor input, alarm relay output, safe mode and anti-break. Door bell, exit button and electric locks can be connected to the controller. When users forget the programming password, they can restore the factory default password without erasing the card holders' information. It is ideal for different occasions such as business apartment, governmental, factory buildings and so on.
Installation Instruction:
