| Place of Origin: | China |
| Brand Name: | Camel |
| Certification: | CE RoHS |
| Model Number: | 809W |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | Within 3 working days after full payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 50,000pcs per month |
| Dimension: | 86*86*50 Mm | Standard Structure: | Fireproof ABS Material, Sandblast Finished |
|---|---|---|---|
| Current: | 3A@36VDC Max | Output Contact: | NO/NC/COM |
| Mechanical Life: | 100,000 Tested | Optional Accessories: | Glass, Cover |
| Weight: | 0.21kg | Color Options: | Green, Red, White, Orange |
| Highlight: | emergency door release break glass unit,emergency door release switch |
||

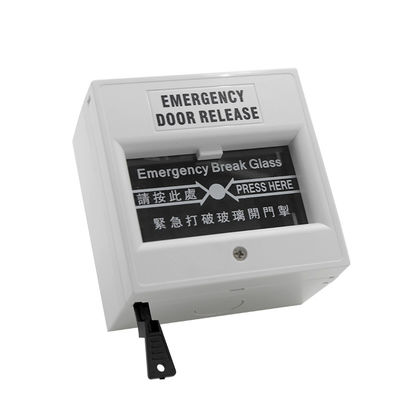

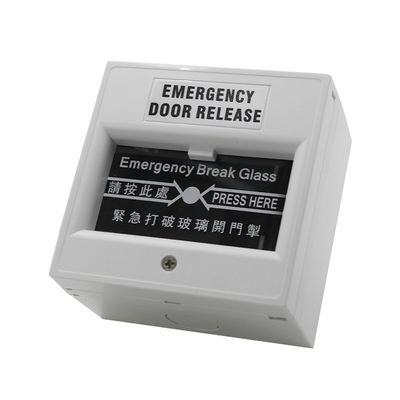

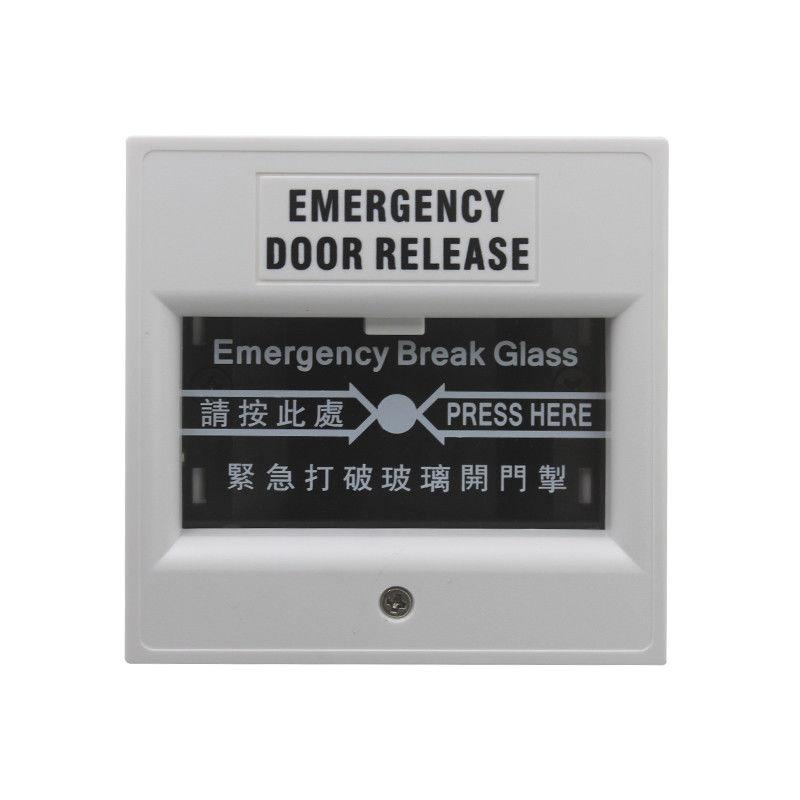

White Call Point Breakglass Emergency Button with Changeable Glass
Product Introduction
Advantage of Camel Security Breakglass Call Point
Technical Parameter
| Size | 86W*86L*53H (mm) |
| Standard Structure | Fireproof Material, Easy to Install |
| Current Rating | 34 @36V DC Max |
| Output Contact | NO/NC/COM |
| Mechanical Lifetime | 100,000 times tested |
| Suitable Doors | Exit Doors, Emergency Doors |
| Optional Accessories | Plastic Cover, Glass |
| Working Temperature | 10～+55(14-131F) |
| Working Humidity | 0-95% (relative humidity) |
| Material | Fireproof ABS Material, Sandblast Finished |
| Option Colors | Green, Red, Yellow, White |
| Package | 100pcs/20kg/56*48*37cm/ctn |
Introduction in Photo
KEYWORD
Breakglass, Emergency Button, Emergency Breakglass, Call Point, Exit button
