Access Control Touchless Exit Button With 304 Stainless Steel Plate

Access Control Touchless Exit Button With 304 Stainless Steel Plate

    • Access Control Touchless Exit Button With 304 Stainless Steel Plate
    • Access Control Touchless Exit Button With 304 Stainless Steel Plate
    • Access Control Touchless Exit Button With 304 Stainless Steel Plate
    • Access Control Touchless Exit Button With 304 Stainless Steel Plate
  • Access Control Touchless Exit Button With 304 Stainless Steel Plate

    Product Details:

    Place of Origin: China
    Brand Name: CAMEL
    Certification: CE RoHS
    Model Number: SNT886

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: reasonable factory-direct prices
    Packaging Details: paperbox for each unit; carton box for 100pcs at dimension 51*46*25cm
    Delivery Time: 5-8 days
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 30,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Touchless Sensor Exit Button Technology: Touchless Sensor
    Input: 3A @12-24V DC Cable Wires: NO/NC/COM/+12V/GND
    LED Indicator: Blue For Standby And Green For Active Material: Brushed Stainless Steel, Metal Button
    Dimension: 86L*86W*25H(mm) Package: 100pcs/14kg/51*46*25cm/ctn





    Square IR Sensor Touchless/No Touch Exit Button Wave to Exit Switch





    Description



    Camel Security SNT886 is a square wide size no touch to exit button with 304 stainless steel plate for indoor use. With touchless sensitive switch unit designed for use with access control system or connect to electric locks. It is an ideal replacement for conventional push buttons, door release button etc. SNT886 series no touch exit button is ideal for us in sanitary applications such as cleanrooms, hospitals, labs and some industry use.





    Technical Parameter



    dimension 86L*86W*25H(mm)
    input 3A @ 12-24V DC
    output NO/NC/COM
    standard structure: 304 stainless steel plate, steel button
    working temperature -20‐+55℃ (14-131F)
    working humidity 0-95% (non-condensing)
    LED indicator

    white LED indicator Power Off

    Blue LED Indicator Standby

    Green LED Indicator Active

    weight 0.14kg





    Key Features of SNT886 touchless exit button



    1, the switch can be activated by a simple hand wave or approach-sanitary and easier access.

    2, NO and NC output for all kinds of locks

    3, no moving parts - more durable

    4, two LED indicator provide visual confirmation for standby (Blue) and operated/actived (Green)

    5, built-in sounder buzzer

    6, single gang plate fits flush box, we also provide ANSI Size 115*70 plate, Narrow Size 115*40 plate and 86*50 plate, surface mounting backbox

    7, 9-12V DC

    8, 30mA current consumption when standby and 60mA when actived

    9, CE RoHS Certificated

    10, 3 years warranty

    11, experienced sales person with full support





    Product Name



    no touch to exit button, rex touchless, touchless rex, no touch request to exit, touchless sensor button, touchless sensitive, exit button





    Product Pictures

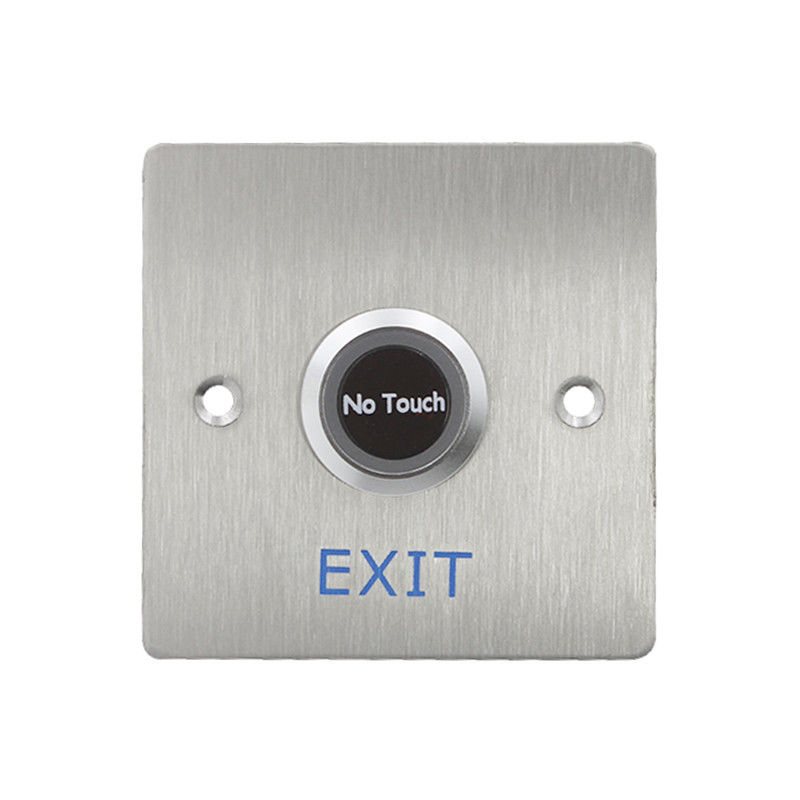

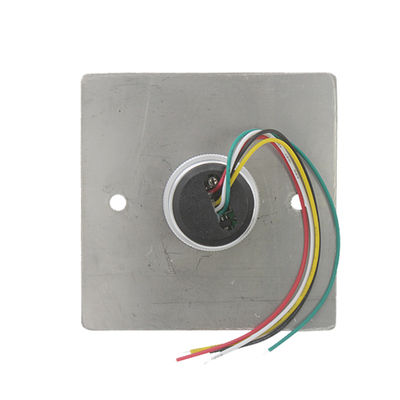

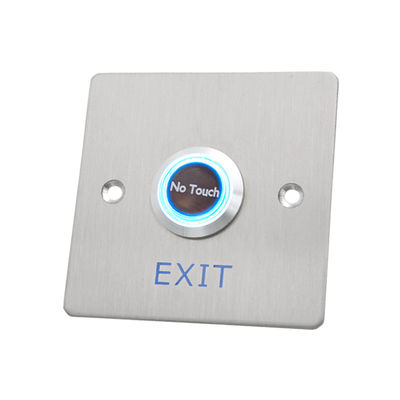

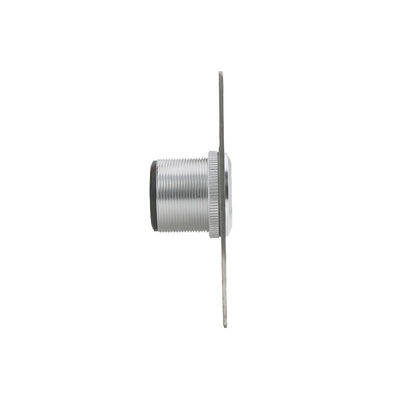

    Access Control Touchless Exit Button With 304 Stainless Steel Plate
