| Place of Origin: | China |
| Brand Name: | CAMEL |
| Certification: | CE RoHS |
| Model Number: | S70KLC |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | reasonable factory-direct prices |
| Packaging Details: | paperbox for each unit; carton box for 100pcs at dimension 52*43*32cm |
| Delivery Time: | within 3 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000,000pcs per month |
| Contacts: | 2N.O/2N.C/2COM/LED | Optional Accessories: | M70 Backbox |
|---|---|---|---|
| Size: | 115*70*30mm | Material: | 304 Stainless Steel Faceplate And Metal Switch |
| Product Name: | ANSI Size Momentary Key Switch | Feature: | Anti-Vandal Key Switch |
| Warranty: | 3 Years | Certificates: | CE RoHS |
| Package: | 100pcs/21kg/56*37*47cm/ctn | Original: | Shenzhen Guangdong |
| Highlight: | remote on off switch,electric key switch |
||

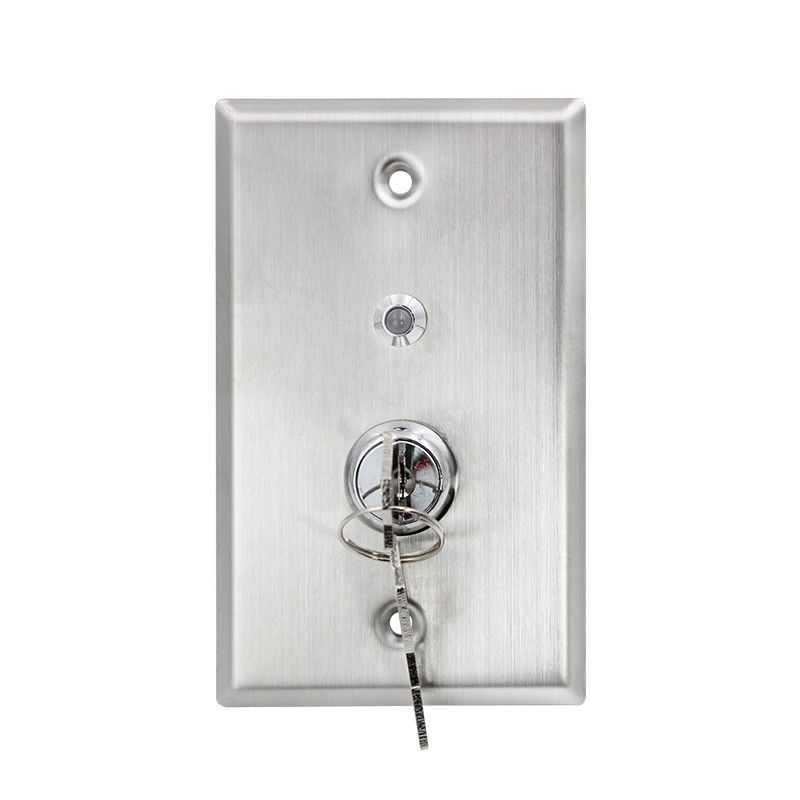

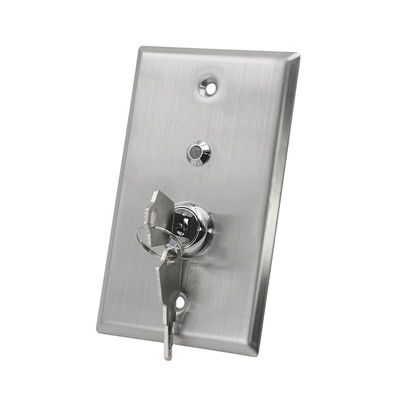

Tamper proof Momentary Key Switch Dual Light NO / NC / COM with 2 Keys
Product Introduction
S70KLC Series product is American size, also called sqaure size Keyswitch with dual light indicator, we also provide elegant style square size backbox M70 for surface mount. It is screw terminal for easy installation and nice looking. And there are different sizes faceplates for optional, such as 86*86mm, 86*50mm and 115*40mm. Please choose any size you prefer and send to us. Your order will meet our great care and support.
Keyswitch is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprised, department stores and residences etc.
Exit Button Specialists Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.
Technical Parameter
| Size | 115W*70L*30H (mm) |
| Material | 304 Stainless Steel Faceplate, wire drawing finished |
| Current | 3A @36V DC Max. |
| Mechanical Life | 500,000 times tested |
| Output Contacts | 2N.O/2N.C/2COM/LED |
| Working Temperature | -20~+55℃ (14-131F) |
| Working Humidity | 0-95% (non-condensing) |
| Standard Package | 100pcs/56*37*47cm/21kg/ctn |
Key Features
1, OEM your sign is welcomed.
2, Anti- Vandal Switch for protection.
3, Standby: Red Light Indicator; Active: Green Light Indicator
4. 115*70mm square size is good for South & North American and other countries at this size.
5. strong and durable 304 stainless steel button and panel, laser printing for years last
6, color cables included, it save your time and energy when installation
7, M70 Backbox is optional for surface mount.
8, screw type terminal installation for easy use
9, 3 years warranty, we have confidence in our products quality
10, carry CE RoHS Certification, CE at 2014/30/EU and RoHS at 2011/65/EU
Products name
Egress device, Momentary Key Switch, Exit Button with emergency key switch, Key Switch with light, Anti-vandal Key Switch with light indicator and LED Indicator Flexible Key Switch.
