| Place of Origin: | China |
| Brand Name: | CAMEL |
| Certification: | CE RoHS |
| Model Number: | Z30LS |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | reasonable prices |
| Packaging Details: | paperbox for each unit; carton box for 200pcs Z30LS at dimension 38*38*20cm |
| Delivery Time: | within 3 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 60,000 units per month |
| Product Name: | Door Exit Push Button | Size: | 80L*30W*25H（mm） |
|---|---|---|---|
| Material: | Zinc Alloy Housing, Metal Button With LED | Output Contact: | NO/COM/LED |
| Mechanical Life: | 100,000 Tested | Package: | 200pcs/38*38*20cm/28kg/ctn |
| Certificates: | CE RoHS | Warranty: | 3 Years |
| High Light: | door push button switch,push button momentary switch |
||
Mini Size Panel Door Exit Push Button with Backbox Surface Mount LED Indicator
Product Introduction
Exit Button Specialists Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.
Exit buttons also refer to push to exit button or press to exit button & request to exit button. They are an integral part of all access control systems, doors can be secured but retain the ability to exit easily.
Exit button is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprised, department stores and residences etc.

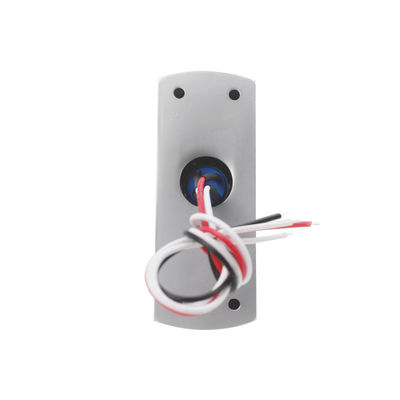

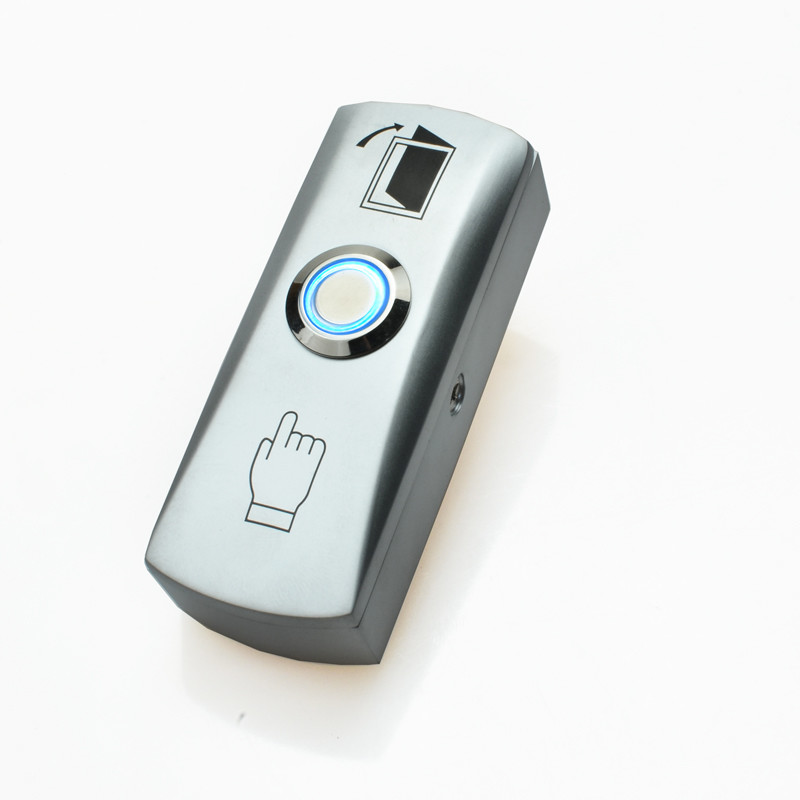

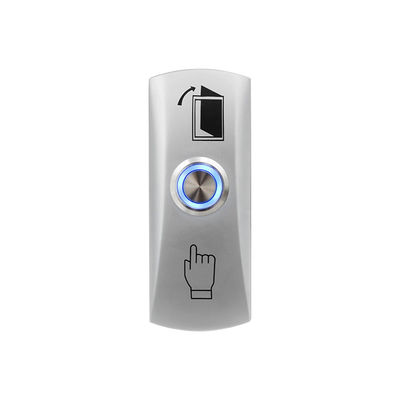

Z30LS is a small narrow size request to exit button with backbox and zinc alloy housing. They are typically used in narrow frame doors and surface mounted.
Products Key Words
push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control
Key Features
1, zinc alloy housing with backbox, it is good for surface mounted. easy to install.
2, ultra narrow size is designed for narrow frame and elegant style
3, 100,000 cycles tested to assure good quality
4, 200pcs standard package in good condition can save you delivery cost.
5, CE RoHS Certificated, CE at 2014/30/EU and RoHS at 2011/65/EU
6, 3 years warranty, we have confident about our products quality and provide 3 years warranty for our push button products.
Technical Parameter
| Size | 80L*30W*25H(mm) |
| Material | Zinc Alloy Housing, Metal Button |
| Current | 3A @36V DC Max. |
| Output Contact | NO/COM |
| Mechanical Life | 100,000 tested |
| Working Temperature | 10‐55℃ (14-131F) |
| Working Humidity | 0-95% (non-condensing) |
| Standard Package | 200pcs/38*38*20cm/28kg/ctn |
Products Details Introduction
